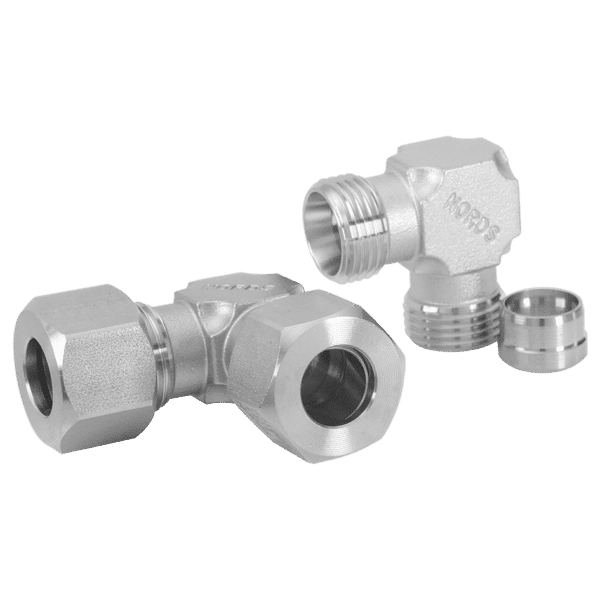

R-1323 Bite-ring couplings
Single ferrule
Individual pressure calculated according to EN 13480-3
Stock standard EN 1.4408

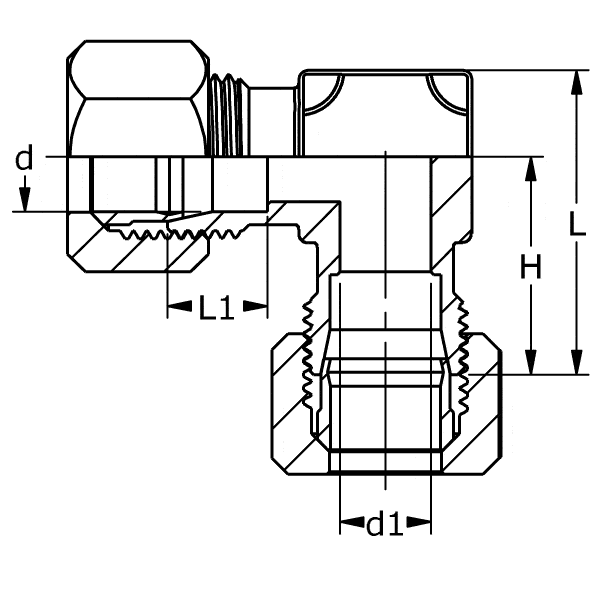

| Dim. | L mm |
L1 mm |
H mm |
d mm |
d1 mm |
Width across flats mm |
Design pressure Mpa |
Weight kg/pce |
Article code EN 1.4408 |
| 6 | 27 | 10,5 | 20 | 6,1 | 5 | 14 | 10 | 0,05 | 11-1323-02 |
| 8 | 28,5 | 10 | 21 | 8,1 | 6 | 17 | 10 | 0,06 | 11-1323-03 |
| 10 | 30,5 | 11 | 22 | 10,2 | 8 | 19 | 10 | 0,09 | 11-1323-04 |
| 12 | 33,5 | 11 | 24 | 12,2 | 10 | 22 | 10 | 0,11 | 11-1323-06 |
| 15 | 42 | 12 | 30 | 15,2 | 12 | 27 | 10 | 0,21 | 11-1323-08 |
| 17,2 | 45,5 | 12 | 32 | 17,4 | 15 | 32 | 10 | 0,32 | 11-1323-11 |
| 18 | 45,5 | 11,5 | 32 | 18,2 | 15 | 32 | 10 | 0,33 | 11-1323-12 |
| 21,3 | 51,5 | 14 | 35 | 21,5 | 19 | 36 | 10 | 0,44 | 11-1323-14 |
| 25 | 56 | 14 | 38 | 25,2 | 22 | 38 | 10 | 0,55 | 11-1323-16 |
