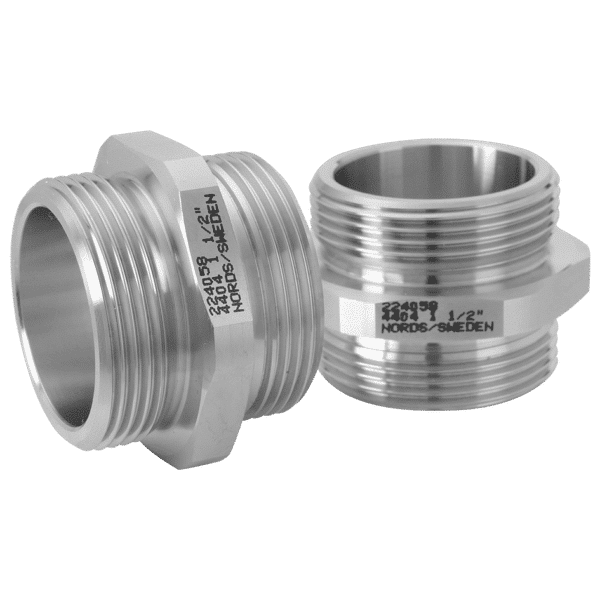

R-207 Z Hexagon nipples (Parallel threads)
Outside parallel threads acc. to ISO 228-1 G
CNC-machined from bar
Stock standard EN 1.4404, other steel grades upon request

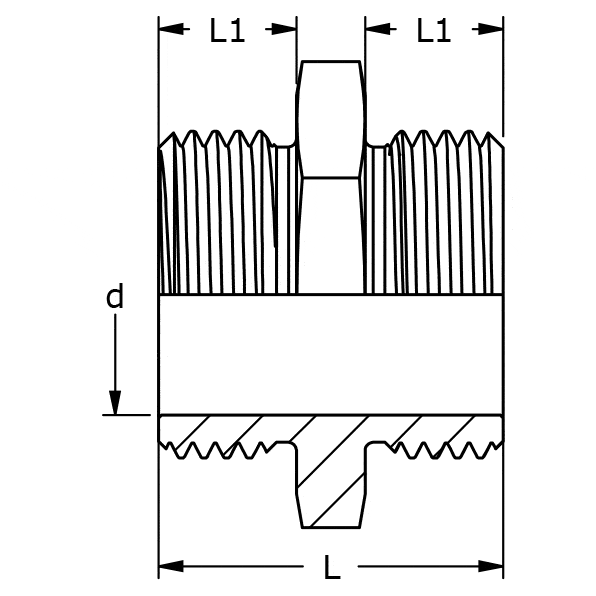

| DN | Dim. | L mm |
L1 ISO 228/1 mm |
d mm |
Width across flats mm |
Weight kg/pce |
Article code EN 1.4404 |
|---|---|---|---|---|---|---|---|
| 8 | 1/4” | 20,5 | 6,5 | 7,5 | 17 | 0,02 | 19-0207-02 |
| 10 | 3/8” | 20,5 | 6,5 | 10 | 22 | 0,03 | 19-0207-03 |
| 15 | 1/2” | 32 | 11 | 14 | 27 | 0,05 | 19-0207-04 |
| 20 | 3/4” | 32 | 11 | 19 | 32 | 0,07 | 19-0207-05 |
| 25 | 1” | 35 | 12 | 24,5 | 41 | 0,12 | 19-0207-06 |
| 32 | 1 1/4” | 41 | 14 | 32 | 50 | 0,21 | 19-0207-07 |
| 40 | 1 1/2” | 41 | 14 | 38 | 55 | 0,23 | 19-0207-08 |
| 50 | 2” | 46 | 16 | 50 | 65 | 0,31 | 19-0207-09 |
3D drawings
You can download the drawings for this product for free by:
- In the table under Dimension table, find out which dimension you are interested in and in the drop-down list below select the part number for that dimension.
- Click Download drawing.
- Go to the shopping cart and log in or create an account if you have not registered.
- Proceed by clicking Free Download.
- Once your order is complete, you can download the selected drawings and you can also access them under Downloads in My Account >.
If you are interested in downloading the entire library of drawings, please contact us.
