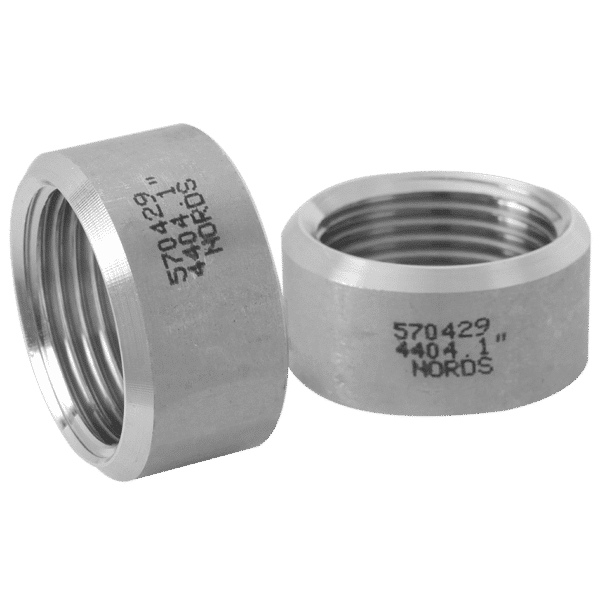

R-203 Half sockets with bevel
Inside parallel threads acc. to ISO 228-1 G
CNC-machined from seamless tubes /alt. bar
Individual pressure calculated according to EN 13480-3
Stock standard EN 1.4404, other steel grades such as EN 1.4307, EN 1.4432, EN 1.4571, EN 1.4462 (Duplex 2205), 1.4539 (904L) and EN 1.4547 (S31254/SMO) upon request. Half sockets without bevel can be offered upon request

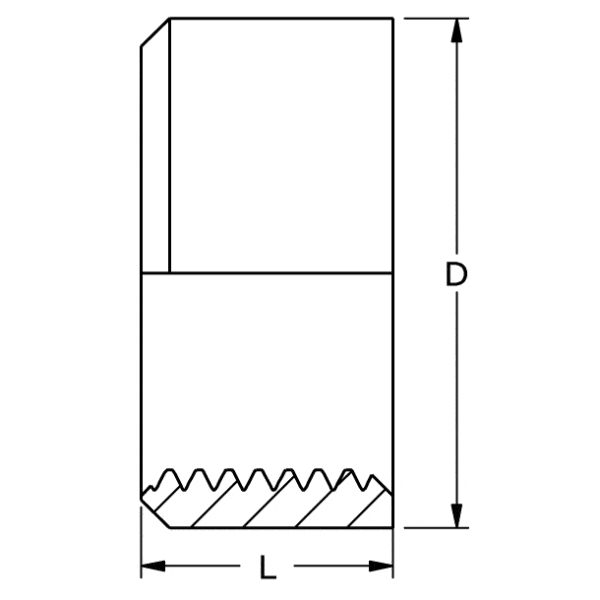

| DN | Dim. | L ISO 228/1 mm |
D mm |
Design pressure Mpa |
Weight kg/pce |
Article code EN 1.4404 |
| 6 | 1/8” | 10 | 14 | 10 | 0,01 | 11-0203-01 |
| 8 | 1/4” | 11 | 18,5 | 10 | 0,01 | 11-0203-02 |
| 10 | 3/8” | 12 | 21,5 | 10 | 0,02 | 11-0203-03 |
| 15 | 1/2” | 15 | 26,5 | 10 | 0,03 | 11-0203-04 |
| 20 | 3/4” | 17 | 31,8 | 10 | 0,04 | 11-0203-05 |
| 25 | 1” | 19,5 | 39,5 | 10 | 0,06 | 11-0203-06 |
| 32 | 1 1/4” | 22 | 48,3 | 6,4 | 0,09 | 11-0203-07 |
| 40 | 1 1/2” | 22 | 54,5 | 6,4 | 0,13 | 11-0203-08 |
| 50 | 2” | 26 | 66,3 | 6,4 | 0,19 | 11-0203-09 |
| 65 | 2 1/2” | 30,5 | 82 | 4 | 0,30 | 11-0203-10 |
| 80 | 3” | 34 | 95 | 4 | 0,45 | 11-0203-11 |
| 100 | 4” | 40 | 122 | 4 | 0,90 | 11-0203-12 |
3D drawings
You can download the drawings for this product for free by:
- In the table under Dimension table, find out which dimension you are interested in and in the drop-down list below select the part number for that dimension.
- Click Download drawing.
- Go to the shopping cart and log in or create an account if you have not registered.
- Proceed by clicking Free Download.
- Once your order is complete, you can download the selected drawings and you can also access them under Downloads in My Account >.
If you are interested in downloading the entire library of drawings, please contact us.
